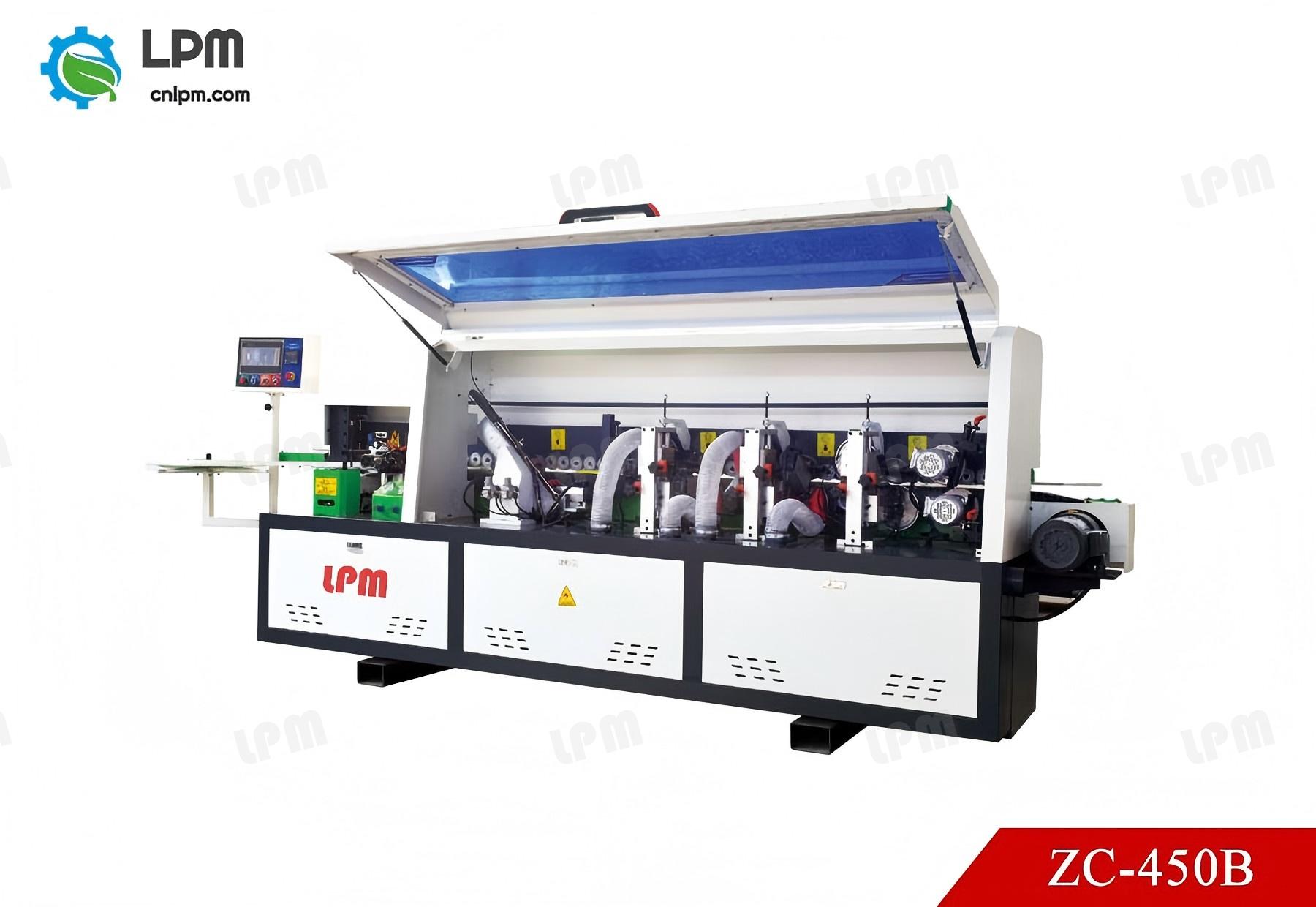

ZC-450B Automatic edge banding machine

Suitable for processing all kinds of MDF, particleboard, wood-based panels ASB panels, PVC panels, plexiglass panels, etc.

Applicable products: solid wood panels, fibreboard, particleboard, MDF and other panels and other panel furniture Edge. Edge of the main PVC, polyester, melamine and wood, and so on.


Achieve results: a high degree of automation, high efficiency, high precision and high aesthetics.


Structural advantages: laser cutting steel plate base, a welded body made of solid deformation does not increase the stability of the machine to ensure that each processing department can work fine. Processing components imported motor and high-quality electrical components.

Contact Us



Technical Parameters

Working thickness10-50mm
Min. working width≥80mm
Min. panel length≥120mm
Feeding speed17m/min
Tape thickness0.4-3mm
Air pressure0.6Mpa
Total power8.1KW
Voltage380v,50hz, 3phase
Weight1200kg
Overall size4300*800*1600mm
