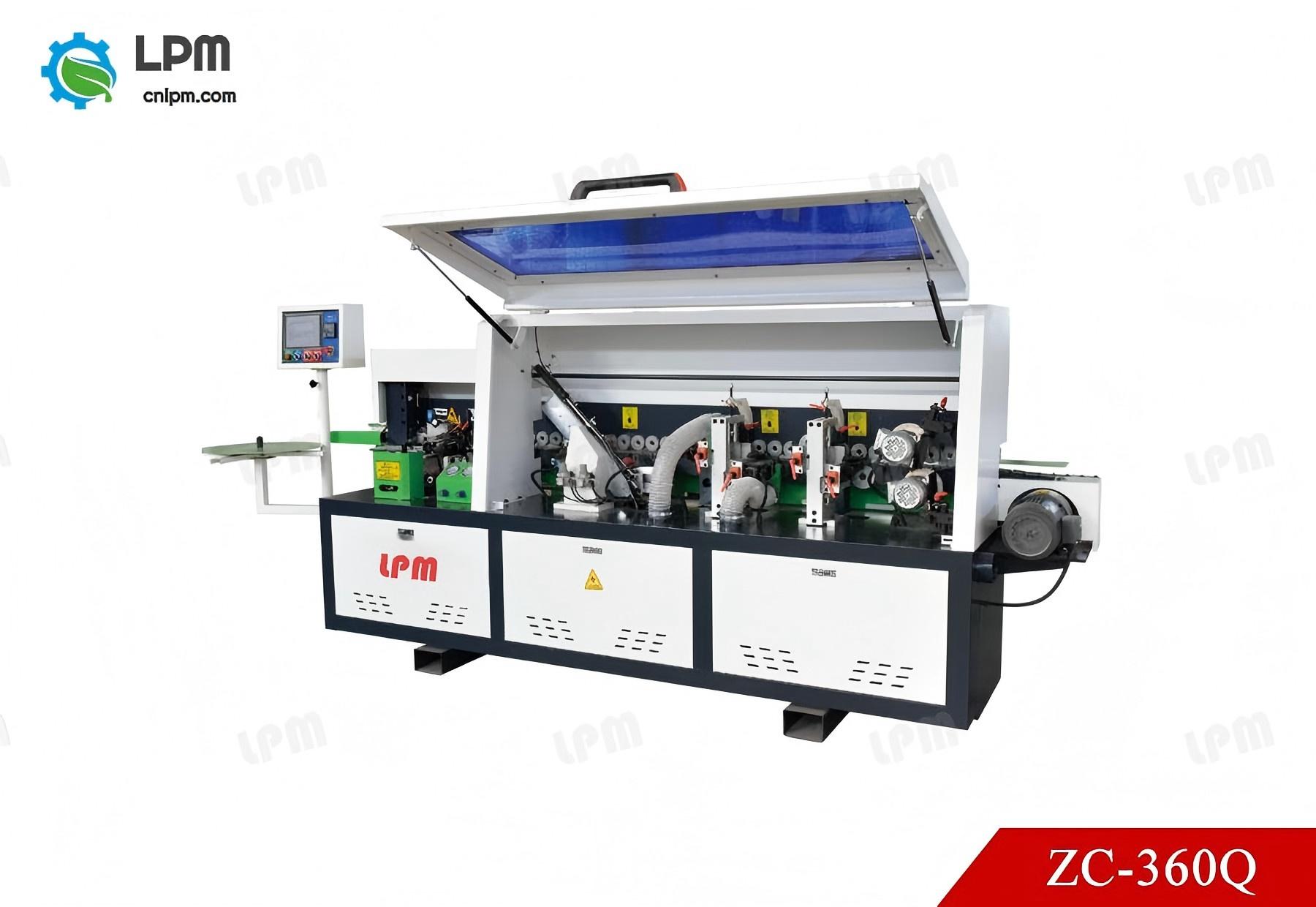

ZC-360Q Automatic edge banding machine
ZC-360Q Automatic edge banding machine
Contact Us
Technical Parameters
Working thickness
10-50mm
Min. working width
≥80mm
Min. panel length
≥120mm
Feeding speed
17m/min
Tape thickness
0.4-3mm
Air pressure
0.6Mpa
Total power
6.8KW
Voltage
380v,50hz, 3phase
Weight
1100kg
Overall size
3700*800*1600mm
