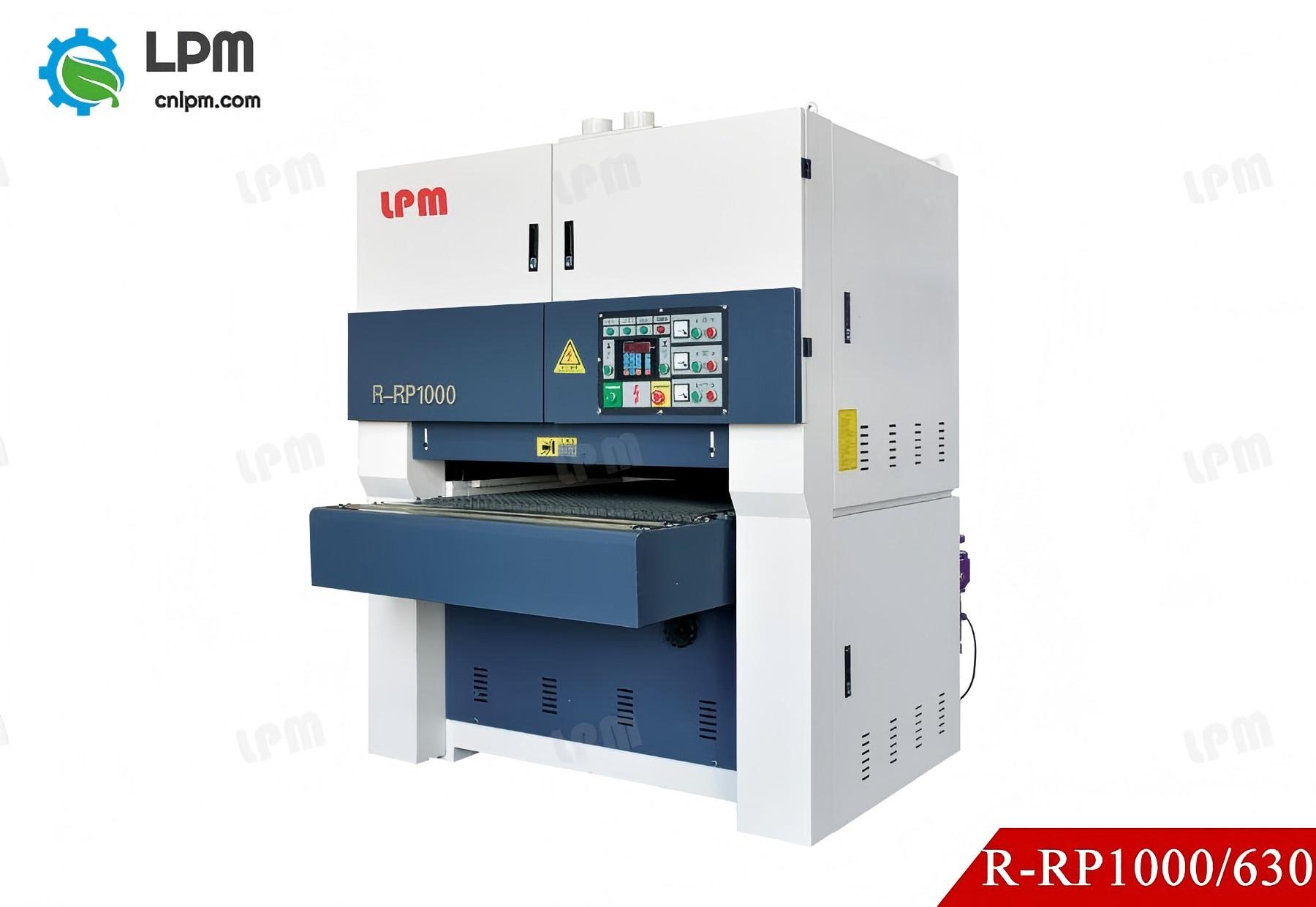

R-RP1000/R-RP630 Wide belt sanding machine

Product description:
It is mainly used for sanding and fine sanding of wood door, floor furniture and other work pieces
Reasonable structure, small deformation, good shock absorption effect
With fault display function, easy maintenance,in case of failure, equipment power failure, brake, transmission bed produced protection drop, can protect the workpiece from being damaged.
The swing and thickness of the belt can effectively ensure the anti-interference ability of the machine

Contact Us

Technical Parameters

Max. processing width1000mm630mm
Min.working length350mm350mm
Working thickness2~200mm2~200mm
Total motor power27.87kw20.37kw
First sand rack power15kw11kw
Second sand rack power11kw7.5kw
Feeding speed5~25m/min5~25m/min
Belt size1020*2000mm650*1930mm
Working air pressure0.6~0.8Mpa0.6~0.8Mpa
Volume of dust collection device25m/S25m/S
Overall size1700 x 1400 x 2050mm1700 x 1100 x 2050mm
Weight2000kg1000kg
